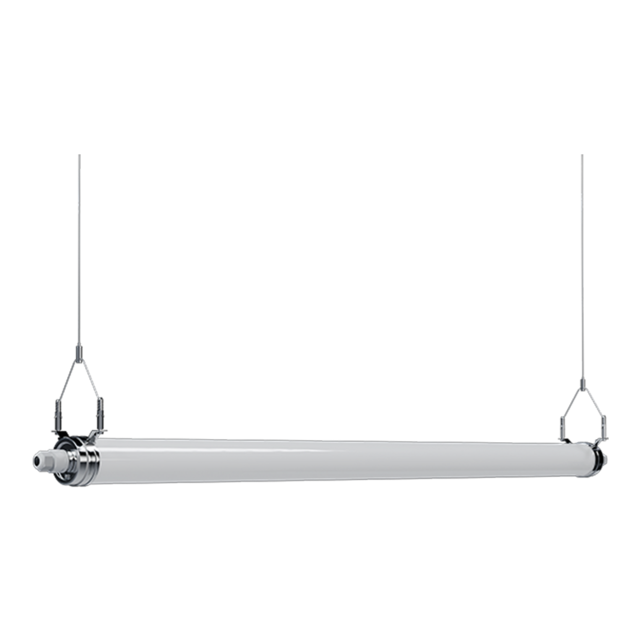

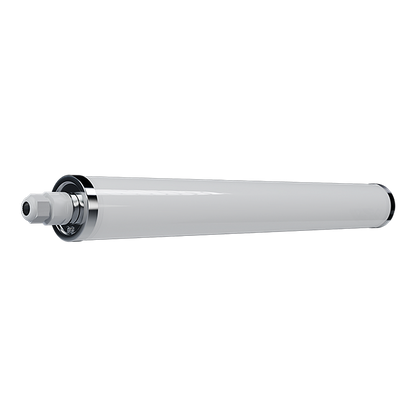

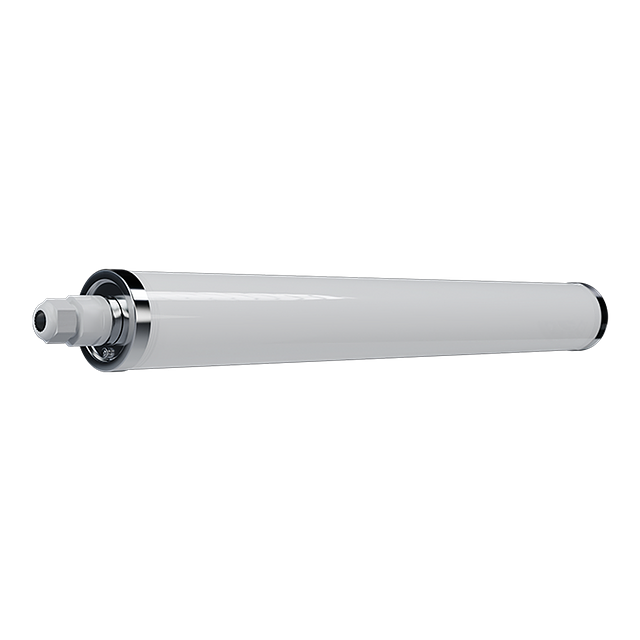

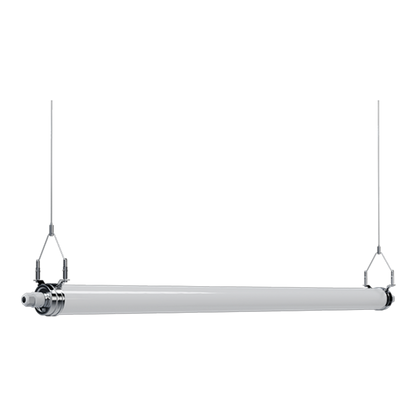

Shat-R-Shield Lighting Ironclad LDL LIGHT DUTY LINEAR Lighting Fixture
Shat-R-Shield’s Light Duty Linear fixture is a rugged LED lighting solution that can be used in a multitude of applications. Ideal for any wash down or task lighting application, and tough enough to be used where impact resistance and possible vandal resistance is required. The fixture’s ability to operate as a stand-alone lighting solution, or wired together in line, creates options that can cover any size area with ease.
Specifically designed to withstand moisture, dust, chemicals and other environments where corrosive materials may apply. Features IP69K and IP66 ratings to withstand high and low pressure wash downs, as well as IK10 and IK06 ratings for high impact resistance.
-
Specifications:
- Lumens: 20W/2,700 Lumens or 50W/6,800 Lumens
- Light Engine CCT: 5000K
- 80 CRI with 0-10V Dimming capabilities
- Polycarbonate Frosted Lens
- Voltage: Universal 120-277V 50/60Hz
- Life Hours: L70>54,000 Hours
- Dimensions: 20W/ 23” Long, 50W/54” Long x 2.5”
- Operating Temp: -22°F to 104°F (-30°C to 40°C)
- Warranty: 5 year limited warranty

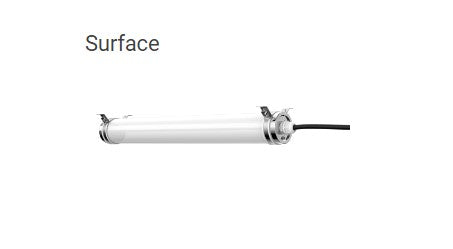

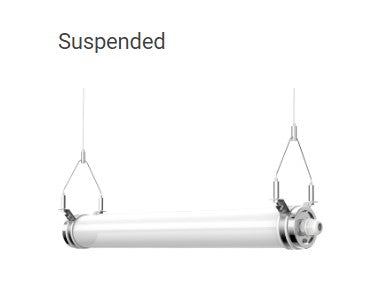

- Mounting options: Surface Mounted or Suspended

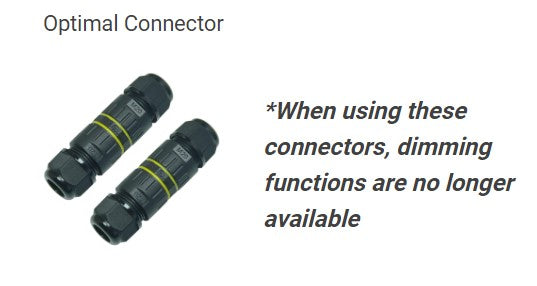

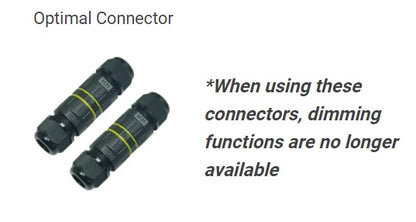

- Optional Optimal Connector (note: when using these connectors, dimming features are no longer available)
- Part Numbers: part numbers shown with 5K option
• FXLDTF20PC5K (Standard 2’ Option)
• FXLDTF20PC5K MT KIT (2’ w/ suspended mount)
• FXLDTF20PC5K W-CON MT KIT (2’ w/ suspended mount & connectors)
• FXLDTF20PC5K W-CONN (2’ w/ connectors only)
• FXLDTF50PC5K (Standard 4’ Option)
• FXLDTF50PC5K MT KIT (4’ w/ suspended mount)
• FXLDTF50PC5K W-CON MT KIT (4’ w/ suspended mount & connectors)
• FXLDTF50PC5K W-CONN (4’ w/ connectors only) - Certifications: cULus, IP69K High Temp & Pressure Jets, IP66 Watertight & Dust-proof, IK10 20 Joules of impact resistance, IK06 1 Joules of impact resistance, NEMA4X Watertight, NEMA5 Dust-tight, UL Wet Location, UL1598, USDA Approved
- Manufactured in America with globally and domestically sourced components
Part of Shat-R-Shield's Light Duty Series: LED fixtures designed for minimum abuse in monitored, low contact, high traffic areas. Applications: Monitored holding cells, Marine Facilities, Industrial Facilities, Airports, Food Processing Plants, Cold Storage / Refrigeration, Wash Down Areas, High Bay Applications, Tunnels, Livestock Farming, Wastewater Treatment Plants, Natatoriums and many other harsh environments.
About Shat-R-Shield Lighting
Shat-R-Shield provides specialized lighting products for correctional, behavioral and other institutions with harsh environments that require durable lighting, including prisons, jails, detention centers, correctional facilities, school gyms, and behavioral healthcare facilities.
Non Returnable This item is non-cancellable and non-returnable.
