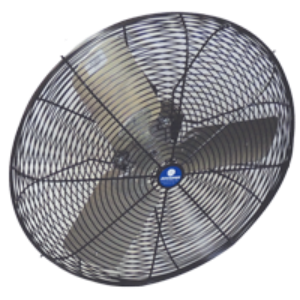

Schaefer 24CFO-HL 24" Hazardous Location Fixed Mount Circulation Fan

Schaefer OSHA compliant circulation fans meet all OSHA safety regulation while delivering maximum airflow. These 1-speed fans have the versatility to be mounted on a ceiling, wall, pedestal or cart, which makes them the ideal cooling solution for any commercial, industrial or agricultural facility.

Features of the Schaefer Ventilation OSHA Compliant Fixed series of Circulation Fans:

• Matched direct drive motors and blades for highest achievable levels of airflow, rated up to 12,000 cfm
• Powder coated steel guards for corrosion resistant and durability
• Energy efficient designed for additional cost savings, draws as little as 1.6 amps
• Thermally protected, heavy-duty, maintenance free, 1-speed motors for long life
• Two year warranty
• Made in the USA

Specific Features of Schaefer model 24CFO-HL 24" Circulation Fan:

• Blade Color:Metallic
• Blade Material:Aluminum
• CFM (high):5280
• CFM (low):3850
• CFM Calculation Standard:ANSI/AMCA Standard 230-99
• CFM Range (Free Air):5001 - 10000
• CFM/Watt (free Air):7.24
• Component Certifications:Motor - CSA
• Cord:Not included
• Country of Origin:US
• Diameter (inches):24
• Drive Type:Direct
• Fixed or Portable:Fixed
• Frequency (Hz):60
• Guard Color:White
• Guard Material Coating:Powder Coated Steel
• Guard Spacing (inches):1/2 OSHA
• Max RPM:1725
• Mount Type Recommended:WMTA24-B, VS24FMT
• Nameplate Amps:9.8/4.9
• Number of Wings:3
• Oscillating:No
• Schaefer Performance Test No.:0762
• Phase:1
• Power (hp):1/2
• Power (Voltage Phase):115 Single Phase
• Product Color:Black
• Product Weight (pounds):34
• Speed Control Compatible:No
• Speeds:1
• Switch:Not included
• VFD Compatible:No
• Voltage:115
• Able to Ship Small Parcel:Yes
• Product Shipping Dimensions:27 X 27 X 13

About Schaefer Ventilation Equipment:
Schaefer Ventilation, a division of Pinnacle Climate Technologies, is a leading manufacturer of high quality climate control systems for a wide range of commercial, industrial, and agricultural applications. Schaefer Ventilation Equipment is best known for making top quality air circulation fans, portable cooling fans, portable air conditioners, confined space ventilators, exhaust shutter fans, evaporative cooling and misting systems, electric and gas indoor and outdoor radiant heaters, fixed and portable heaters.
